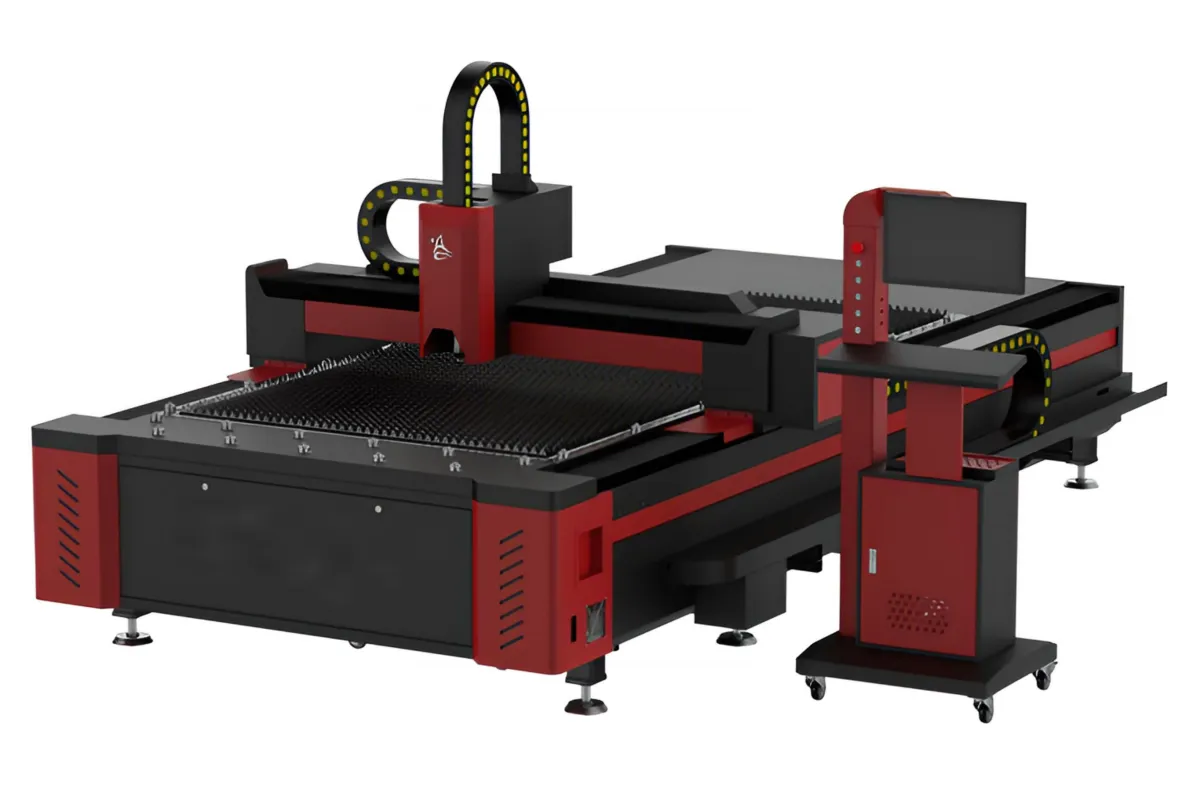

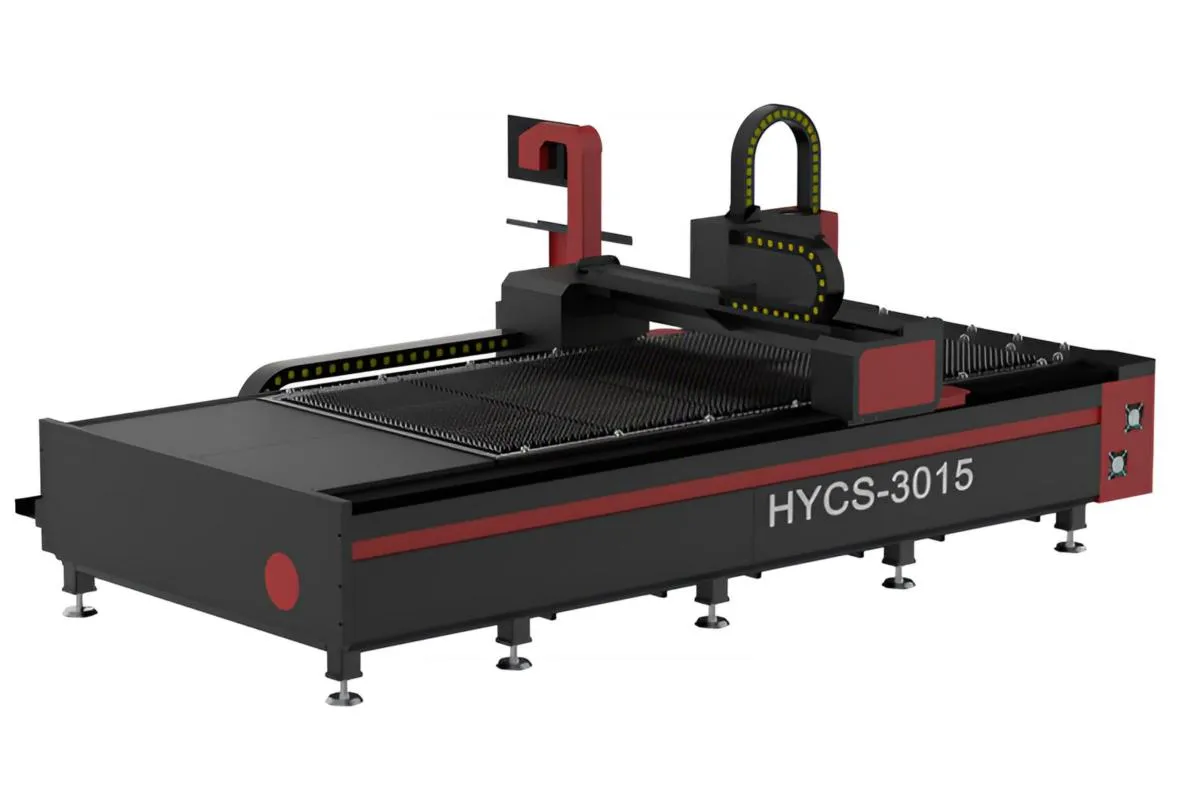

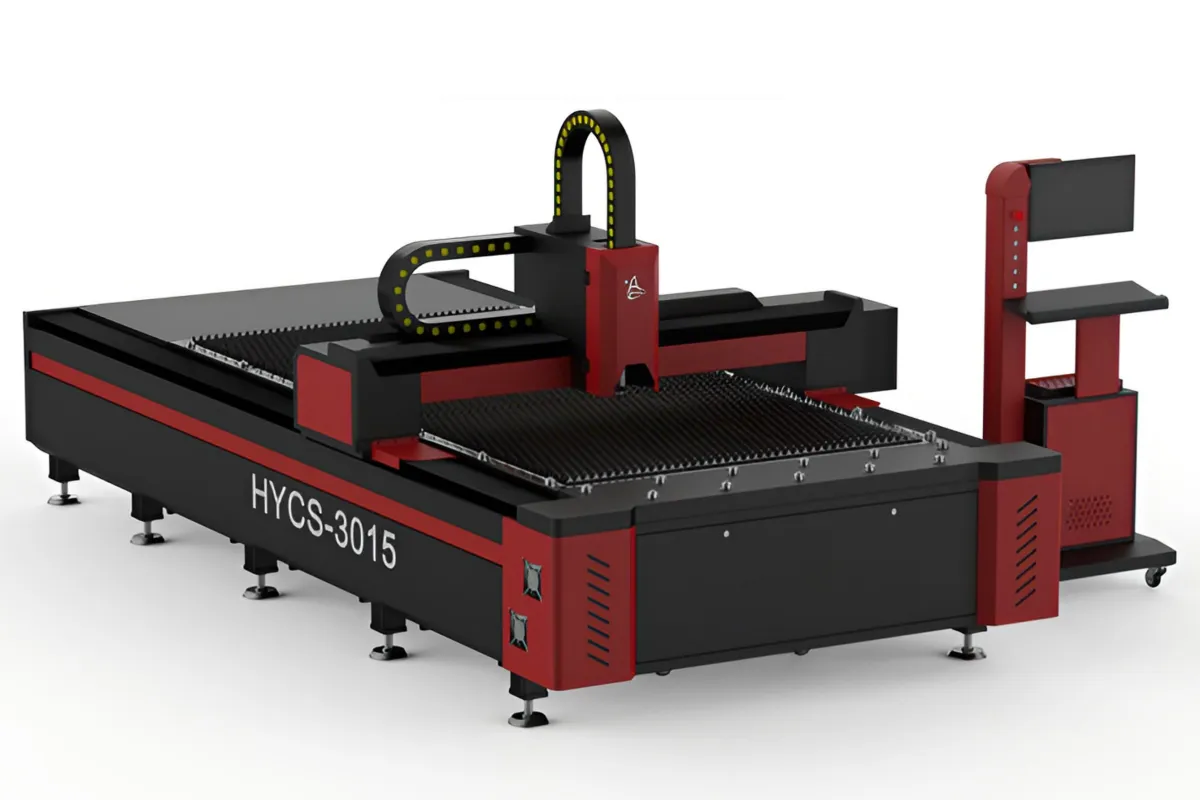

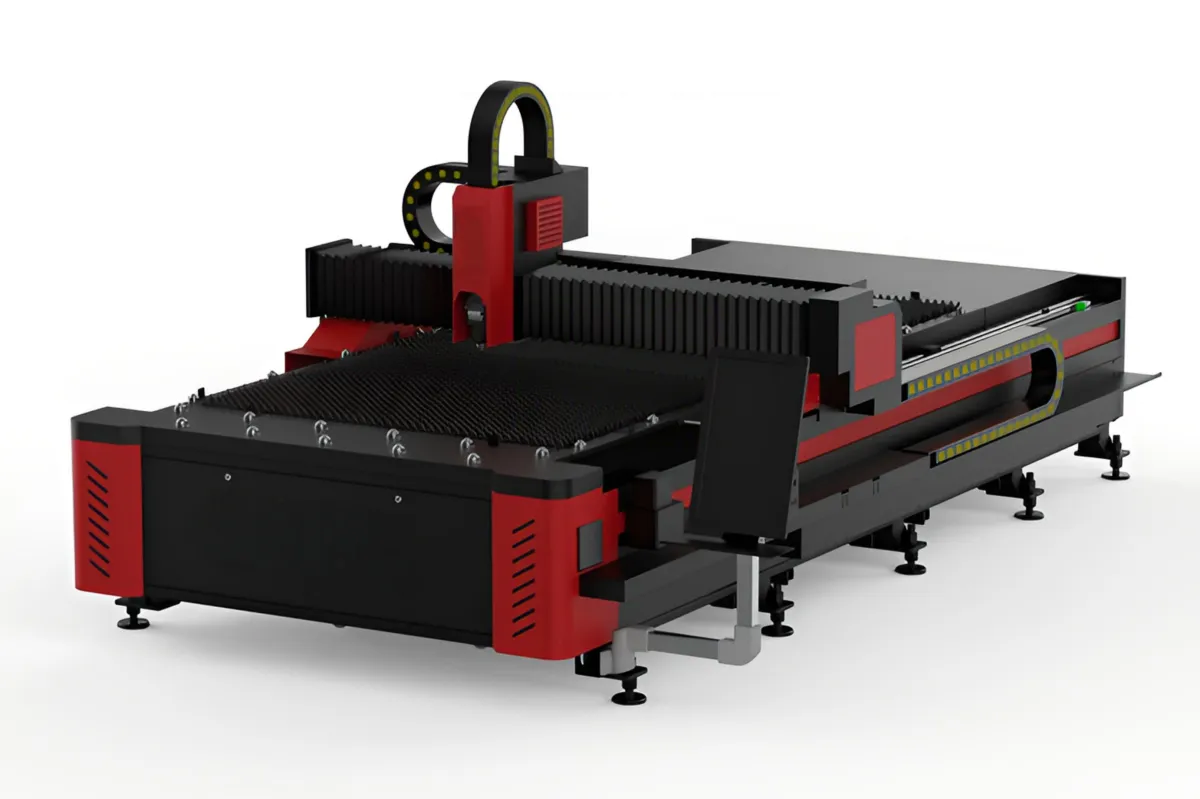

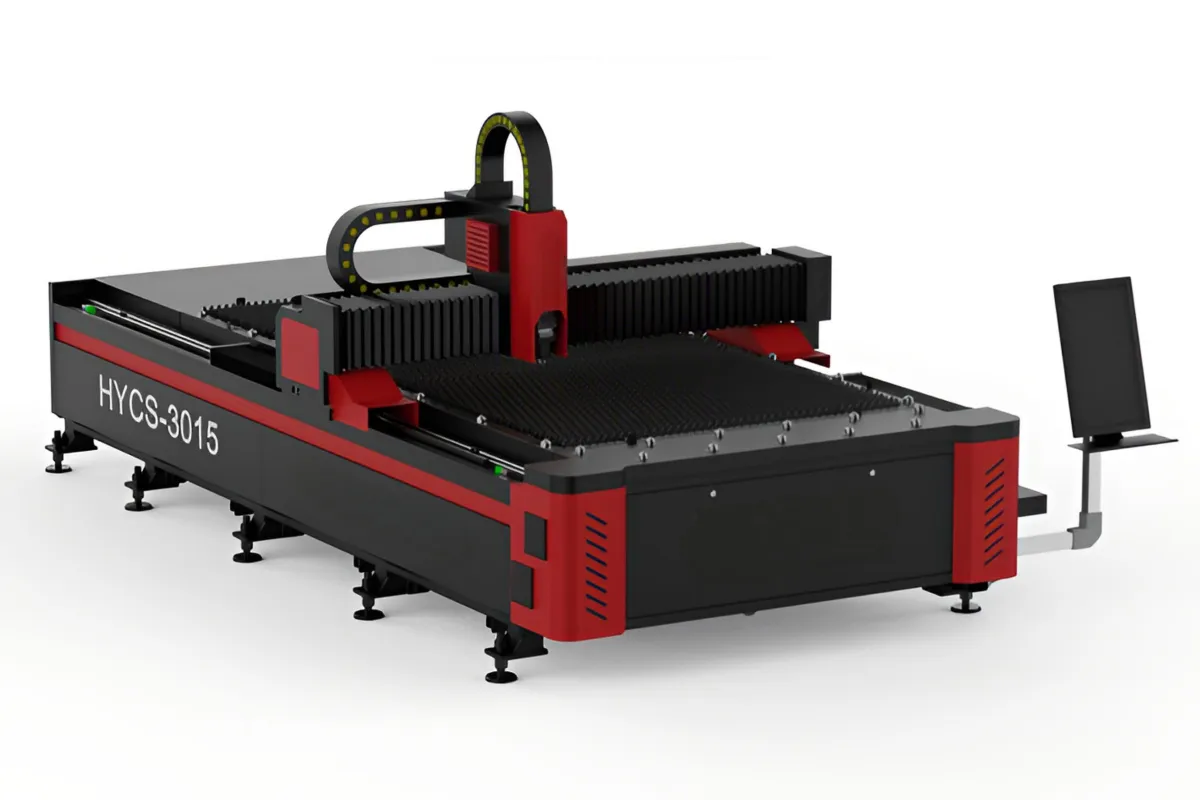

High-precision CNC fiber laser cutting machine for carbon steel, stainless steel, aluminum, brass, copper, and galvanized sheets. CE, FDA, ISO 9001 certified.
| Parameter | Specification |
|---|---|
| Laser Power | 1000W / 1500W / 2000W / 3000W / 6000W / 8000W / 12000W |
| Laser Source | Raycus / IPG / Maxphotonics (fiber laser) |
| Cutting Area | 3000×1500mm / 6000×2000mm / 6000×2500mm / custom |
| Max Cutting Thickness (1000W) | Carbon Steel: 6mm · Stainless Steel: 3mm · Aluminum: 2mm |
| Max Cutting Thickness (3000W) | Carbon Steel: 16mm · Stainless Steel: 6mm · Aluminum: 5mm |
| Max Cutting Thickness (6000W) | Carbon Steel: 25mm · Stainless Steel: 12mm · Aluminum: 10mm |
| Max Cutting Thickness (12000W) | Carbon Steel: 50mm · Stainless Steel: 30mm · Aluminum: 25mm |
| Positioning Accuracy | ±0.03mm |
| Re-positioning Accuracy | ±0.02mm |
| Max Positioning Speed | 140 m/min |
| Max Acceleration | 1.5G |
| Controller | CypCut / Beckhoff / FSCUT (depend on configuration) |
| Motor & Drive | Yaskawa / Panasonic AC servo motors |
| Laser Head | Raytools / WSX / Precitec auto-focus |
| Cutting Gas | Oxygen / Nitrogen / Compressed Air |
| Table Type | Slat bed / Exchange table (optional) |
| Power Supply | 380V 50/60Hz 3-phase |
| Certification | CE, FDA, ISO 9001:2015 |
Positioning accuracy ±0.03mm with auto-focus laser head. Smooth cutting edges — minimal secondary processing required.
Cut carbon steel, stainless steel, aluminum, brass, copper, galvanized steel, and titanium with optimized cutting parameters.
Dual- table design for continuous production — load material on one side while the machine cuts on the other. Zero downtime.
Fiber laser technology with >30% electro-optical efficiency. Lower power consumption than CO2 lasers of equivalent cutting capacity.
CypCut or Beckhoff control system with intuitive CAD/CAM integration. Supports DXF, DWG, AI, PLT file import. Remote support capability.
Full CE compliance (machine directive, EMC, low voltage). Class 1 laser enclosure (FDA CDRH). Safety interlock system.
Precision laser cutting for sheet metal fabrication across multiple industries.
Body panels, chassis parts, brackets, exhaust components — precise cutting for automotive manufacturing and aftermarket.
General sheet metal processing — enclosures, panels, cabinets, frames for industrial and commercial equipment.
High-precision cutting of aluminum and titanium alloys for aircraft interior parts and structural components.
Metal furniture frames, decorative panels, shelving systems — fast and accurate cutting for modern furniture production.
Thin metal enclosures, chassis, heat sink plates — burr-free precision cutting for electronic device manufacturing.
Structural steel cutting, metal roofing, facade panels — reliable production for building and construction projects.
Get a customized quote with shipping to your port. Our sales engineers respond within 24 hours.
