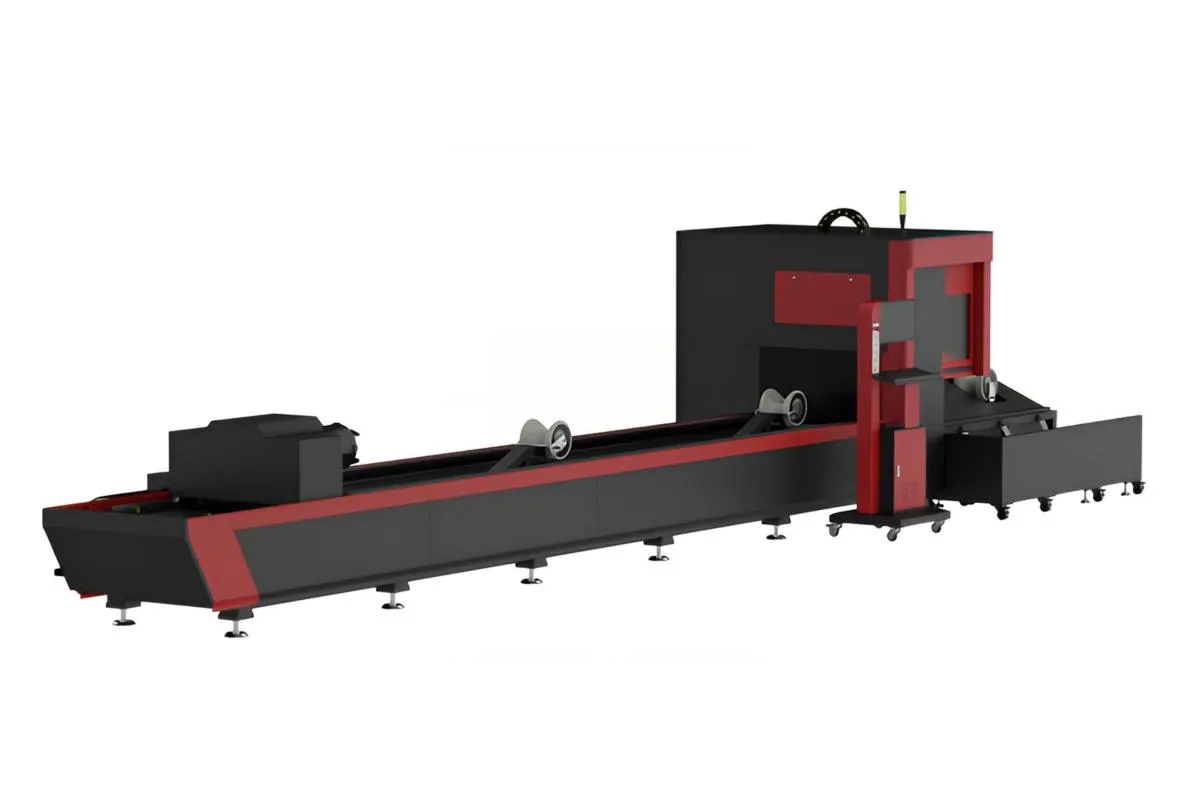

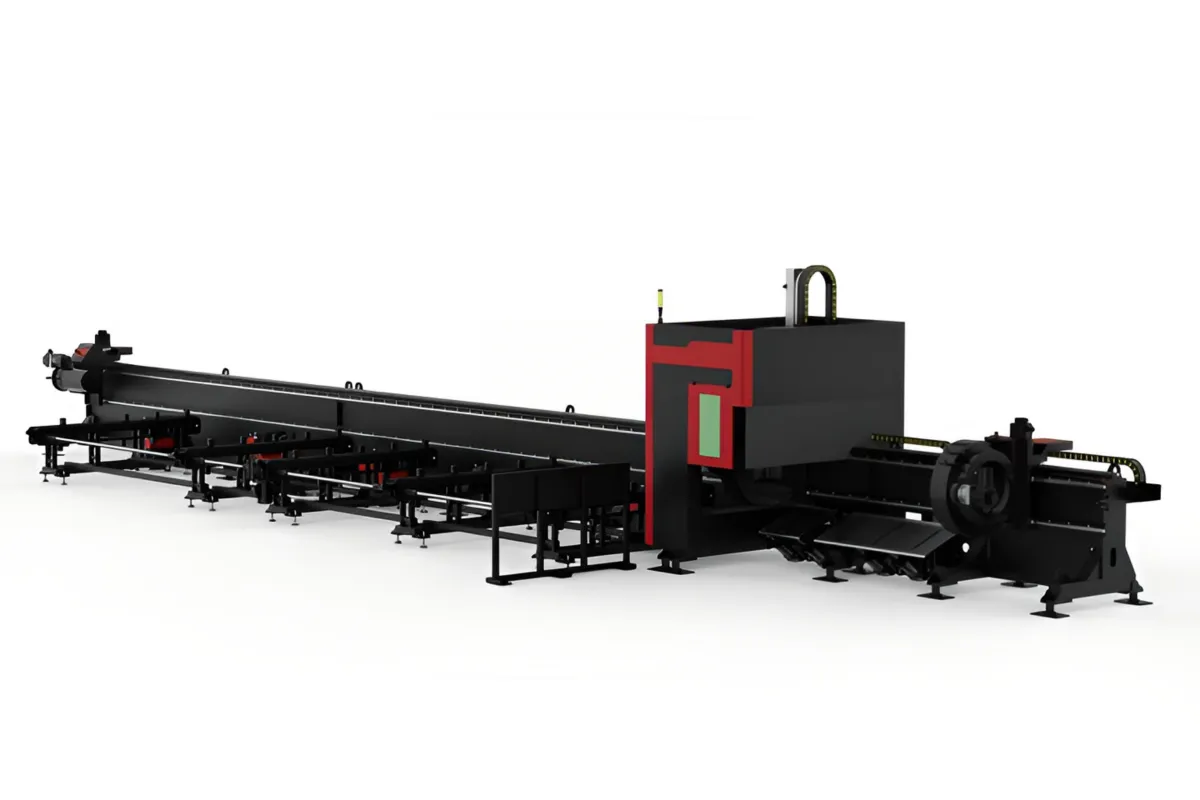

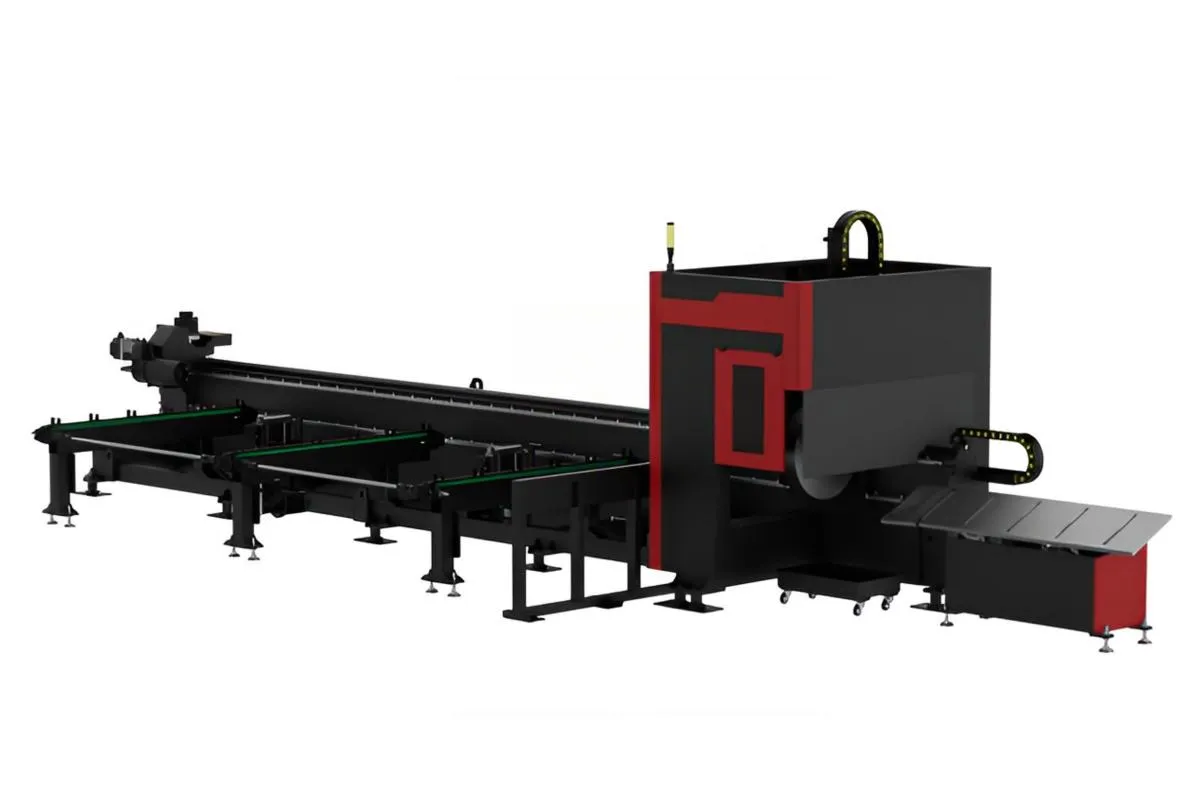

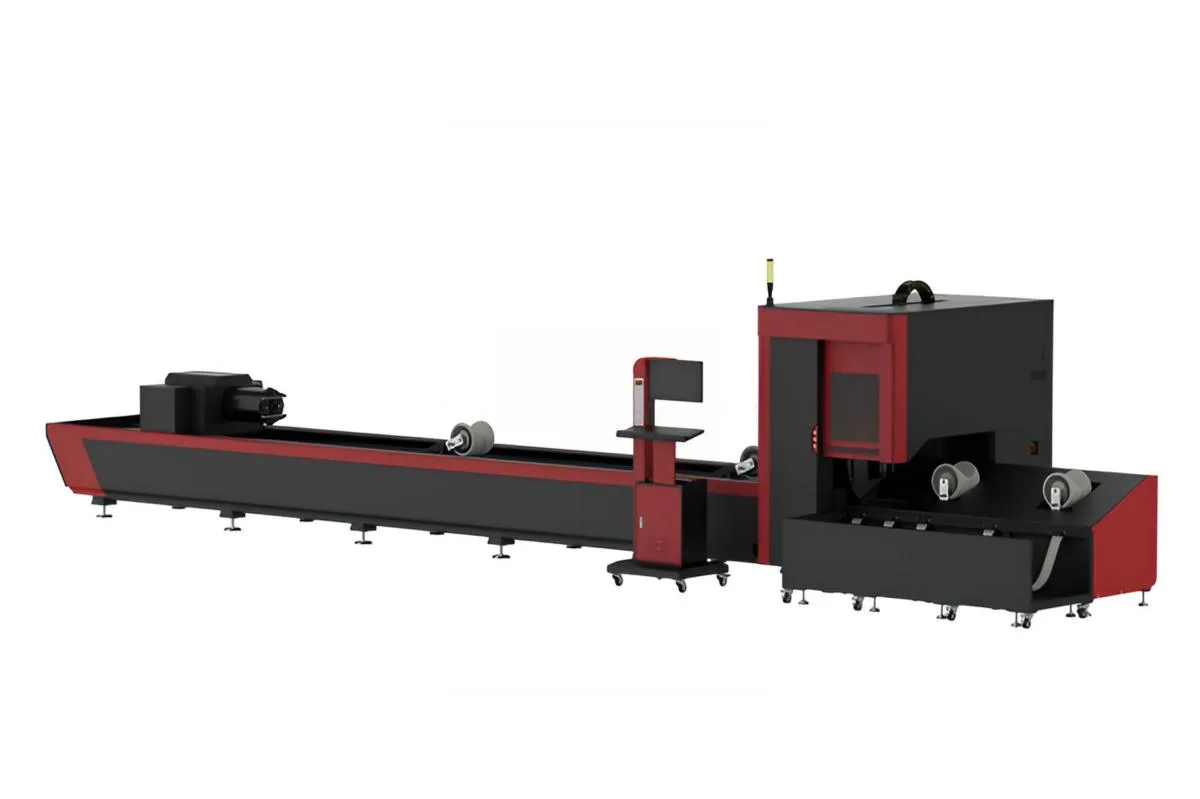

High-speed laser cutting for round, square, rectangular, and profile tubes. Equipped with automatic loading system and rotary chuck for precise 360° cutting.
| Parameter | Specification |
|---|---|
| Laser Power | 1000W / 2000W / 3000W / 6000W |
| Laser Source | Raycus / Maxphotonics / IPG fiber laser |
| Tube Diameter (Round) | 20mm – 300mm (standard) / up to 500mm (custom) |
| Tube Length | 3000mm / 6000mm / 9000mm (auto loading) |
| Square/Rectangular Tube | 20×20mm – 200×200mm |
| Profile/Shape Tubes | Elliptical, triangular, L-angle, C-channel, custom |
| Max Cutting Thickness | Up to 16mm (carbon steel, 6000W) |
| Positioning Accuracy | ±0.03mm |
| Rotary Chuck Speed | 0–120 rpm (variable) |
| Max Linear Speed | 100 m/min |
| Auto Loading System | Chain conveyor / bundle loader (optional) |
| Loading Capacity | Up to 6000mm single tube / bundle loading |
| Chuck Type | Self-centering 3-jaw / pneumatic chuck |
| Controller | CypCut Tube / FSCUT Tube |
| Supported Profiles | Round, square, rectangle, ellipse, L-angle, channel, custom |
| Cutting Gas | Oxygen / Nitrogen / Compressed Air |
| Power Supply | 380V 50/60Hz 3-phase |
| Certification | CE, FDA, ISO 9001:2015 |
Self-centering chuck system with variable speed rotation. Precise cutting at any angle — miter cuts, holes, slots, and complex 3D profiles.
Chain conveyor or bundle loading system. Reduced labor cost with single-person operation. Automatic feeding of tubes up to 6m length.
Process round, square, rectangular, elliptical tubes, L-angles, C-channels, and custom profiles. Quick-change chuck jaws for different shapes.
CypCut Tube controller with 3D simulation. Auto-nesting to minimize waste. Supports DXF import for complex cut patterns on tube surfaces.
Up to 100 m/min rapid traverse with synchronized chuck rotation. Fast piercing and cutting cycles for high-volume production environments.
From furniture frames to automotive components, structural steel to fitness equipment — one machine handles diverse tube fabrication needs.
Serving tube and pipe fabrication across multiple industrial sectors.
Metal chair and table frames, shelving systems, bed frames — precision-cut tube components for modern furniture production.
Exhaust pipes, roll cages, chassis components, seat frames, steering column parts — high-precision tube cutting for automotive applications.
Gym machine frames, handrails, support structures — strong, clean-cut tubular components for commercial and home fitness equipment.
Structural steel tubes, scaffolding components, architectural handrails, curtain wall supports — reliable cutting for building construction.
Tractor frames, implement components, irrigation system parts — durable tube cutting for agricultural equipment manufacturing.
Light pole bases, display stands, signage frames — aesthetically clean cuts for visible structural elements.
Get a customized quote with shipping to your port. Our sales engineers respond within 24 hours.
